主要用途
本機適用子根、莖、葉、草、皮、藤類天然植物藥的飲片切制及其他行業類似物料的切制加工。
Main uses
Suitable to cut the herb roots、stems、barks and flowers.
主要特點
本切藥機是中藥飲片加工的關鍵設備之一，整機數控化生產， PLC+觸摸屏控制，自適應進枓，伺服電機控制格確進給
a能對多種形狀和大小的藥材進行“切”加工。上下運動的刀直接落在輸送帶上，象手工切菜那樣輕松自如，可加工各種片、絲、粒，與現有的切藥機相比，具有成品率高（比普通切藥機提高 5?8%），切斷長度準確、調整方便，飲片切口平整、光滑，設備操作簡單，維修方便，符合GMP要求。
Main technical characteristics

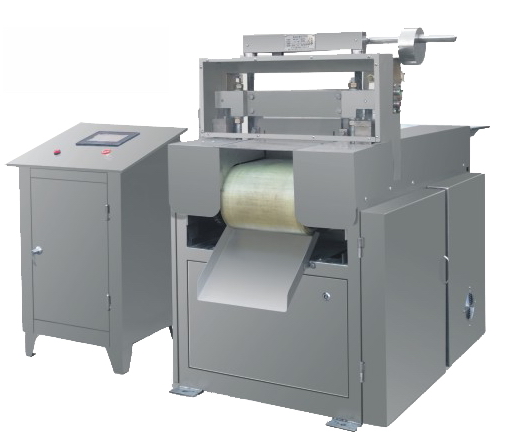

The herb-cutting machine is one of the critical machines in the herb-processing industry. The machine is digitally operable and PLC+ screen structured, could process filar, granular and sheet herb. Compared with other herb- cutting machines, it has the characteristics of lov/ bad herb piece ratio and good herb piece shape and can meet the requirements of GMP.
型號
Type |
生產能力
Capacity
(kg/h) |
切片規格
Knife size
(mm) |
輸送帶寬度
Conveying
belt width
(mm) |
主電機
Main motor
(KW) |
伺服電機
Servo motor
(KW) |
外形尺寸
dimension
(mm) |
總重量
weight
(kg) |
|
QWZL300 |
40-300 |
0.7-60 |
300 |
Y90L-4 1.5KW |
E1310 1.0KW |
1600x1050x1280 |
500 |
